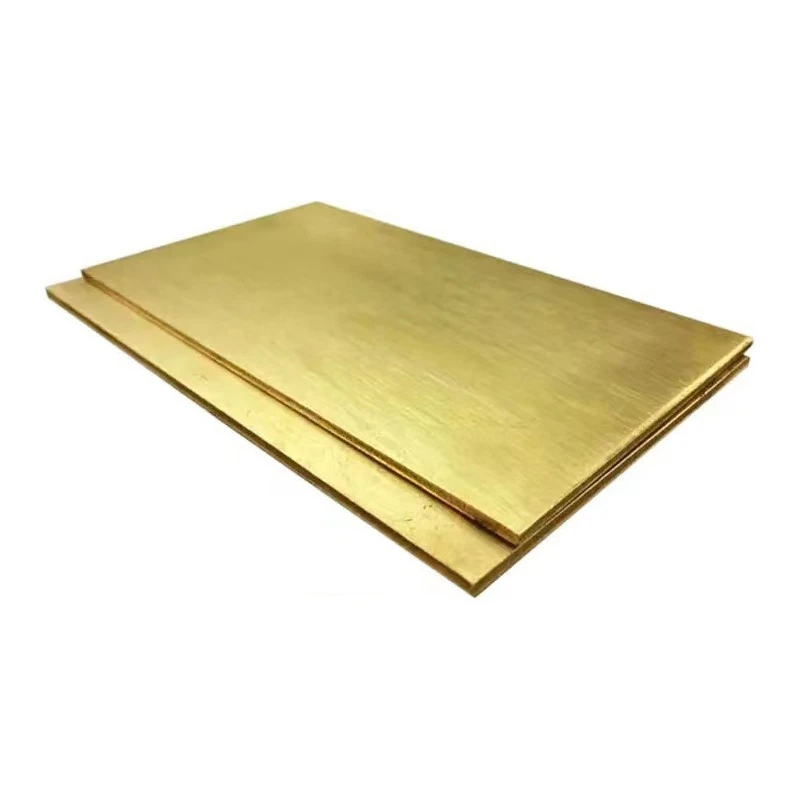

Brass Plate

Brass Plate

Grade: H62, H63, H65, H68, H70, H85, H90, H95,etc.
Specification: Thickness 0.15-3.0mm,Width 10-1050mm.
Temper: O, 1/4H, 1/2H, H, EH, SH
Finish: Bending, Welding, Decoiling, Cutting, Punching
Send Inquiry
Description
Technical Parameters

Description:



Grade H62, H63, H65, H68, H70, H85, H90, H95,etc.
Specification Thickness 0.15-3.0mm,Width 10-1050mm.
Temper O, 1/4H, 1/2H, H, EH, SH
Finish Bending, Welding, Decoiling, Cutting, Punching



Product Details:



Brass is an alloy composed of copper and zinc. Brass Plate are widely used due to their excellent mechnical properties, physical properties, high electrical and thermal conductivity and corrision resistance. They are applied in electronic and telecommunication equipment components (like connectors), interior decoration, clothing accessories, and electrical materials for manufacturing generators, busbars, cables, switchgear, transformers, etc.



Mechanical Properties



Alloy Grade Temper Tensile strength (N/mm²) Elongation % Hardness
H62 C2800 C28000 CUZn40 M O M02 R340/H085 ≥290 ≥325 275-380 340-420 ≥35 ≥35 ≥33 ≤95 45-65 85-115
Y2 1/4H H02 R400/H110 350-470 355-440 400-485 400-480 ≥20 ≥20 ≥15 90-130 85-145 50-70 110-140
1/2H H03 415-490 415-490 415-515 ≥15 105-160 52-78
Y H H04 R470/H140 ≥585 ≥470 485-585 ≥470 ≥10 ≥6 125-165 ≥130 55-80 ≥140
T H06 565-655 ≥2.5 ≥155 60-85
H63 C2720 C27200 CUZn37 M O M02 R300/H055 ≥290 ≥275 285-350 300-370 ≥35 ≥40 ≥38 ≤95 55-95
Y2 1/4H H02 R350/H095 350-470 325-410 385-455 350-440 ≥20 ≥35 ≥19 90-130 85-145 54-67 95-125
1/2H H03 R410/H120 355-440 425-495 410-490 ≥28 ≥8 64-70 120-155
Y H H04 R480/H150 410-630 ≥410 485-550 480-560 ≥10 ≥3 125-165 ≥105 67-72 150-180
T H06 R550/H170 ≥585 560-625 ≥550 ≥2.5 ≥155 71-75 ≥170
H65 C2700 C27000 CUZn36 M O R300/H055 ≥290 ≥275 300-370 ≥40 ≥40 ≥38 ≤90 55-95
Y4 1/4H H01 R350/H095 325-410 325-410 340-405 350-440 ≥35 ≥35 ≥19 85-115 75-125 43-57 95-125
Y2 1/2H H02 R410/H120 355-460 355-440 380-450 410-490 ≥25 ≥28 ≥8 100-130 85-145 54-64 120-155
Y H H04 R480/H150 410-540 410-540 470-540 480-560 ≥13 ≥3 120-160 105-175 68-72 150-180
T EH H06 R550/H170 520-620 520-620 545-615 ≥550 ≥4 150-190 145-195 73-75 ≥170
TY SH H08 ≥585 570-670 595-655 ≥180 165-215 75-77
H68 C2620 C26200 CUZn33 M / / R280/H055 ≥290 / / 280-380 ≥40 / ≥40 ≤90 / / 50-90
Y4 R350/H095 325-410 350-430 ≥35 ≥23 85-115 90-125
Y2 355-460 ≥25 100-130
Y R420/H125 410-540 420-500 ≥13 ≥6 120-160 125-155
T R500/H155 520-620 ≥500 ≥4 150-190 ≥155
TY ≥570 ≥180
H70 C2600 C26000 CUZn30 M O M02 R270/H055 ≥290 285-350 270-350 ≥40 ≥40 ≤90 55-90
Y4 1/4H H01 R350/H095 325-410 340-405 350-430 ≥35 ≥21 85-115 43-57 95-125
Y2 1/2H H02 R410/H120 355-460 355-440 395-460 410-490 ≥25 ≥28 ≥9 100-130 85-145 56-66 120-155
Y H H04 R480/H150 410-540 410-540 490-560 ≥480 ≥13 120-160 105-175 70-73 ≥150
T EH H06 520-620 520-620 570-635 ≥4 150-190 145-195 74-76
TY SH H08 ≥570 570-670 625-690 ≥180 165-215 76-78
H85 C2300 C23000 CUZn15 M O M20 R260/H055 ≥260 ≥260 255-325 260-310 ≥40 ≥40 ≥36 ≤85 55-85
Y2 1/2H H01 R300/H085 305-380 305-380 305-370 300-370 ≥15 ≥23 ≥14 80-115 42-57 85-115
Y H H02 R350/H105 ≥350 ≥355 350-420 350-370 ≥4 ≥105 56-64 105-135
R410/H125 ≥410 ≥125
H90 C2200 C22000 CUZn10 M O M20 R240/H050 ≥245 ≥225 230-295 240-290 ≥35 ≥35 ≥36 50-80
Y2 1/2H H02 R280/H080 330-440 285-365 325-395 280-360 ≥5 ≥20 ≥13 50-59 80-110
Y H H04 R350/H110 ≥390 ≥350 395-455 ≥350 ≥3 ≥4 ≥140 60-65 ≥110
H95 C2100 C21000 CUZn5 M O M20 R230/H045 ≥215 ≥205 220-290 230-280 ≥30 ≥33 ≥36 45-75
1/4H H01 R270/H075 225-305 255-305 270-350 ≥23 ≥12 34-51 75-110
Y H H04 R340/H110 ≥320 ≥305 345-405 ≥340 ≥3 ≥4 57-62 ≥110



Industrial Applications:



Our brass plate has good ductility, deep drawing performance, weldability, platability and good corrision resstance. It can be widely used in electronic appliances, LED, home decoration, heat dissipation components, daily hardware,etc.
